Understanding how to draw a Lewis dot structure is essential for anyone studying chemistry. This simple yet powerful tool helps you visualize the bonding between atoms in a molecule. By following a few basic rules, you can easily create Lewis dot structures for any compound.
Before we dive into the steps of drawing a Lewis dot structure, let’s first understand the concept behind it. The Lewis dot structure, also known as Lewis structure or electron dot structure, is a diagram that shows the bonding between atoms in a molecule and the lone pairs of electrons that may exist. This visual representation is crucial for predicting the chemical behavior of a compound.

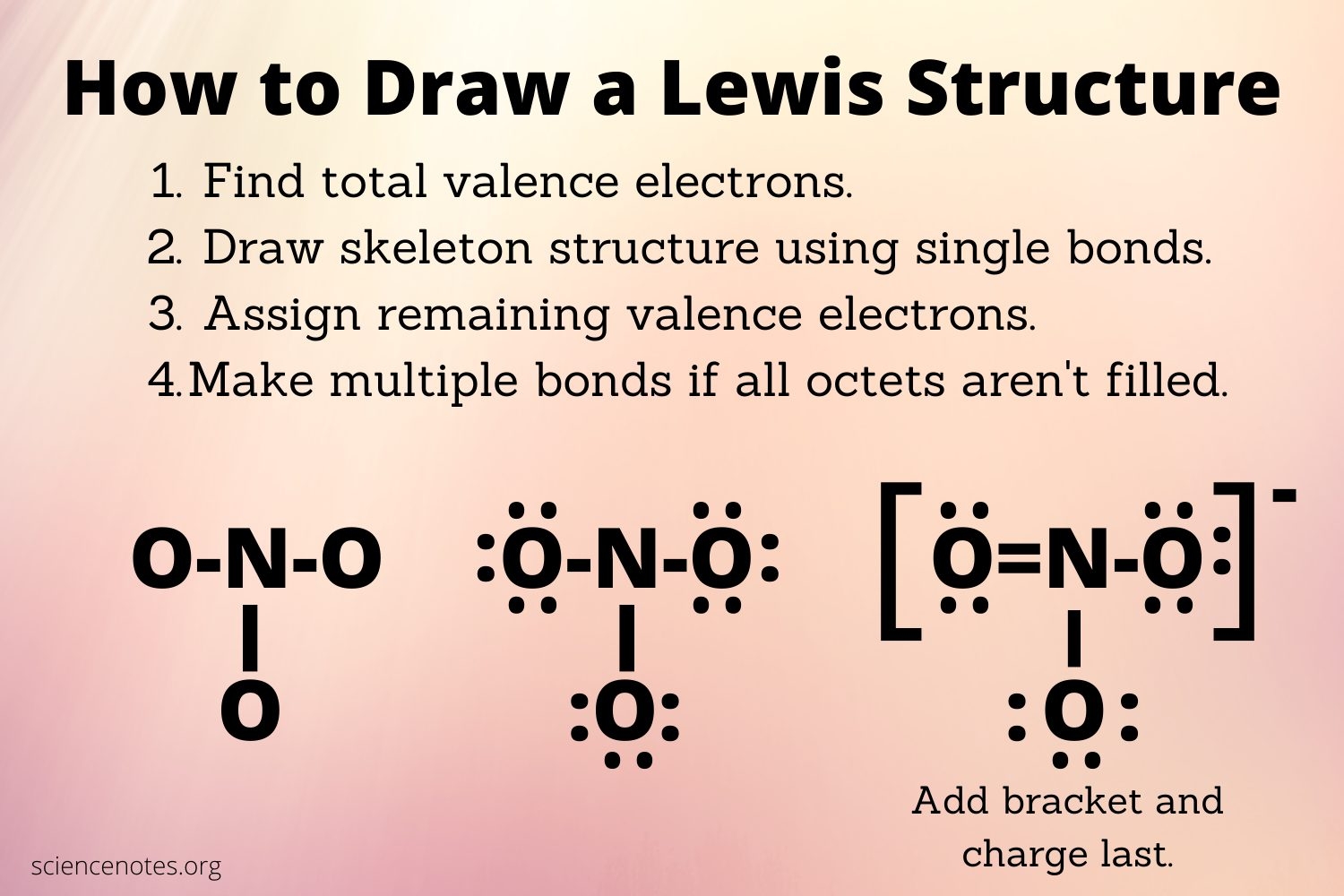

Steps to Draw a Lewis Dot Structure
1. Count the total number of valence electrons in the molecule by adding the valence electrons of each atom. For main group elements, the number of valence electrons can be determined by looking at the group number on the periodic table.
2. Determine the central atom in the molecule. The central atom is usually the least electronegative element or the one that can make the most bonds. Place it in the center of the structure.
3. Connect the central atom to the surrounding atoms using single bonds. Remember that each bond consists of two electrons. Distribute the remaining electrons around the atoms to satisfy the octet rule, except for hydrogen, which only needs two electrons.
4. If there are still extra electrons after satisfying the octet rule for each atom, place them as lone pairs on the outer atoms. However, if the central atom does not have an octet, you may need to form double or triple bonds to fulfill the octet rule.
5. Check if the formal charges of each atom are minimized. Adjust the Lewis dot structure by moving electron pairs if necessary to achieve the most stable arrangement.
By following these steps, you can create accurate Lewis dot structures for various molecules and ions. Practice drawing different structures to improve your skills and understanding of chemical bonding.
In conclusion, mastering the art of drawing Lewis dot structures is essential for any chemistry student. This visual representation helps you predict the behavior of compounds and understand their bonding patterns. By following a few simple steps, you can create accurate Lewis structures for any molecule. Keep practicing and experimenting to enhance your skills in this fundamental aspect of chemistry.
